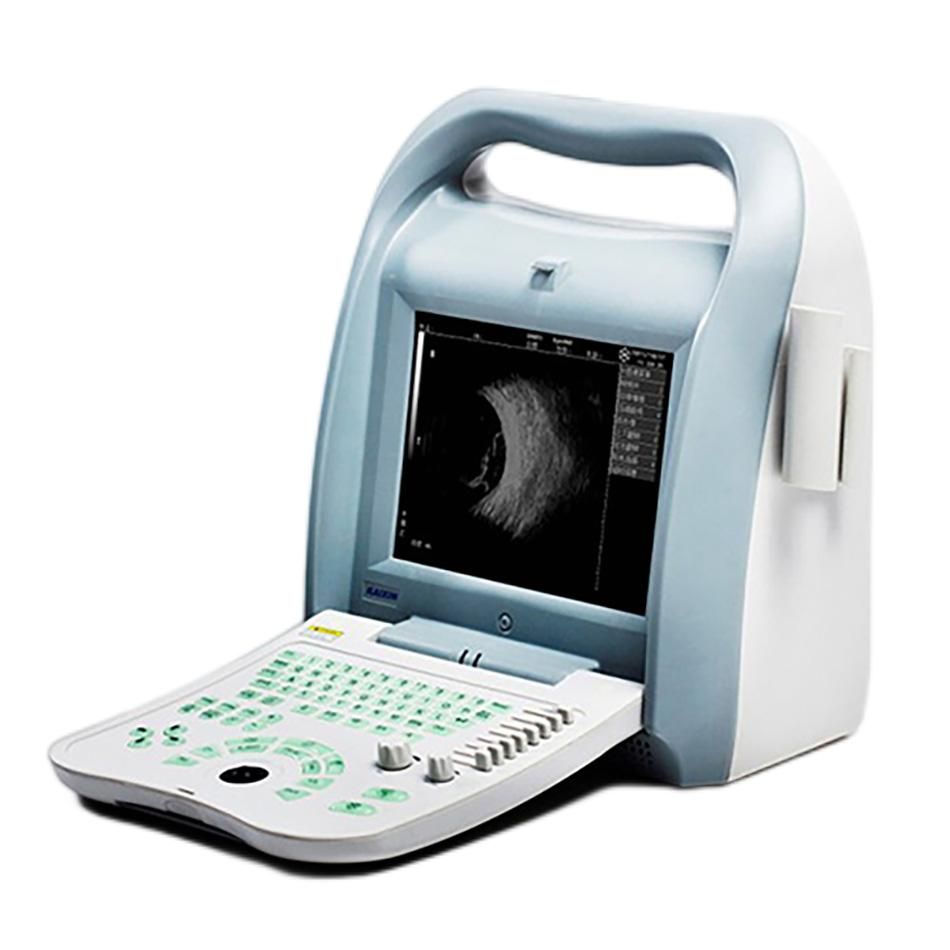

Ophthalmic Ultrasound Machine A and B Scan I Model ODU8

Ophthalmic Ultrasound Machine A and B Scan I Model ODU8

$4,650.00 USD
$4,650.00 USD
Sale Sold out

Ophthalmic A and B Scan

Features:
Humanized Operation Design:
1. 10.4’ adjustable LED screen;
2. Press one key could transport current image to PC workstation
3. Equipped with keyboard floodlight, used for dark room.
Abundant Dates Management:
1. 100 images permanent storage capacity
2. Standard workstation software, easily management and print data

Ophthalmic Ultrasound Machine A and B Scan I Model ODU8

Specification:

A Scan B Scan
Display B, B/B, 4B, A five point measure, A single point measure Scan mode Sector scanning, stepping motor with high precision
Measurement Range A five point: 0-36mm; A single point: 0-72mm Comparison of two or four images
Accuracy ±0.05mm Depth options 24, 31, 38, 42, 45, 49, 52, 56mm
Measure ACD, Lens, Vitreous CCT, and AXL (immersion) Compression curve 8
Eye type Normal/Aphakic/dense cataract/manual
Measure mode Immersion and contact, manual and auto Post processing 8
Calculation Std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable. Postponed depth range 25-32mm
IOL formulas SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS

Display of random two formulas, calculation of degree of IOL, DEM of emmetropization Of IOL, DAM of IOL, REEF after surgery, 100 groups of A scan results storage
A single point measurement
Magnifications X1.0, x2.0, x4.0
Depth Display 0-36mm
