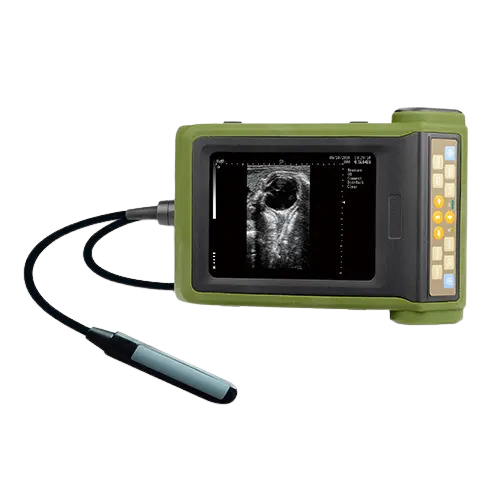

Portable Veterinary Ultrasound Scanner I RKU-10 I B Mode
Portable Veterinary Ultrasound Scanner I RKU-10 I B Mode
Couldn't load pickup availability
Product Description
Applications: Cats, Cattles, Dogs, Horses, Pigs, Sheep
Application:
1. Diagnose the pregnancy of swine, bovine, ovine, canine, feline and other animals.
2. Diagnose animal’s uteri and fetus condition.
3. Automatic calculate the back fat and lean percentage.

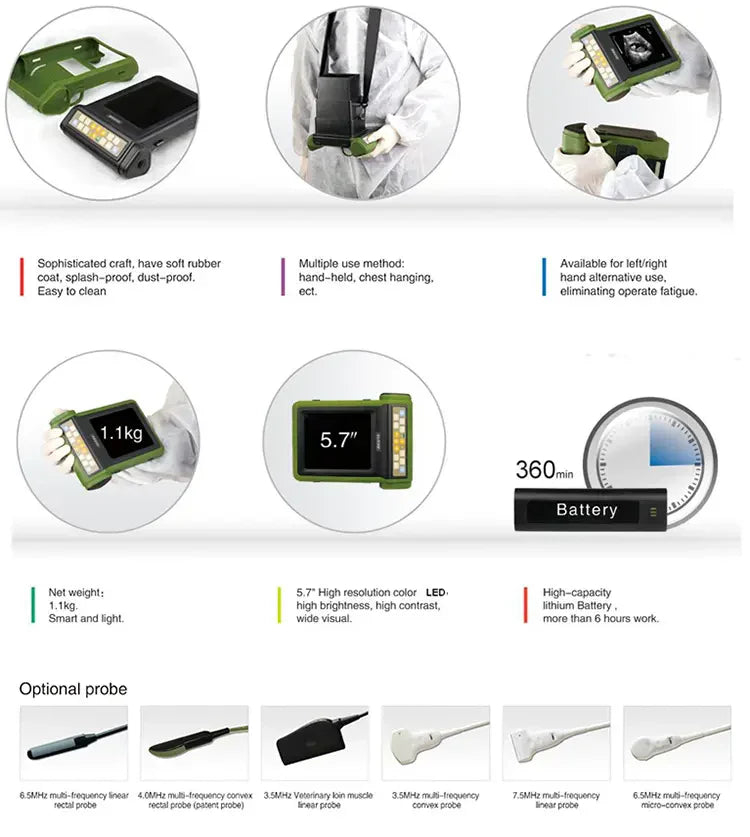

Features:
1. Multiple use method hand- held, chest hanging.
2. Available for left/right hand alternative use, eliminating operate fatigue.
3. Net weight: 1.1kg, smart and light.
4. 7″ high resolution color LED, high brightness, high contrast, wide visual.
5. High-capacity lithium battery, more than 6 hours work.
Specifications:
|
Application |
Diagnose the pregnancy of swine, bovine, ovine, canine, feline and other animal. Diagnose animal’s uteri and fetus condition Automatically calculate the back fat and lean percentage |
|
Display mode |
B. 2B. 4B. BM. M, totally 5 kinds |
|
Image storage |
100 frames permanent storage |
|
Cine loop |
256 frames cine loop |
|
Pseudo color |
Internal eight pseudo colors (incl. B/W ) |
|
OB report |
|
|
OB measurement |
EDD and GA for bovine, equine, ovine, canine, feline, goat, swine and llama |
|
Grid |
6 kinds (None Grid、 Line grid、 Point grid、10mm spcae point ruler、 2mm spcae point rulers 10mm and 2mm spcae point ruler) |
|
USB port support large capacity, USB disk support document management software upgrades/one-key storage |
|
|
Support color laser printer directly print various image and reports |
|
|
Standard configuration: main unit: 1 pc. , probe : 1pc, lithium battery: 1 pc, sunshine cover: 1 unit, black plastic suitcase: 1pc |
|
|
Optional configuration |
Lithium battery |
|
|
Leather case saddlebag |
|
Optional probe |
6.5MHz multi-frequency linear rectal probe |
|
|
4.0MHz multi-frequency convex rectal probe |
|
|
3.5MHz veterinary loin muscle linear probe |
|
|
3.5MHz multi-frequency convex probe |
|
|
7.5MHz multi-frequency linear probe |
|
|
6.5MHz multi-frequency mico-convex probe |
Package Includes:
1. Main unit: 1 pc
2. 6.5MHz linear rectal probe: 1 pc
3. Power adapter: 1 pc
4. Internal battery : 1 pcs
5. Soft rubber coat: 1 pc
6. Sunshine cover: 1 unit (A,B,C three sections adjustable)
7. Black plastic suitcase: 1 pc
8. Base charger, belt, probe socket spatula: 1 pc for each
